![Bwat plonje [2 L]](/uploads/202111045/small/plunger-cans31566710726.jpg?size=150x0)

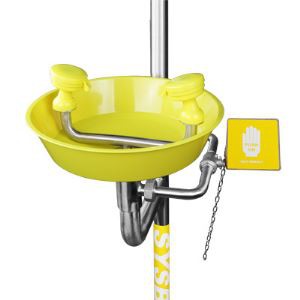

Pedestal Mounted je lave sistèm
SYSBEL pedestal Mounted Eye Lave sistèm complète ak ANSI / ISEA Z358.1-2009 estanda ak itilize pou pwoteksyon ijans sekirite.
Tès ak sètifye pa CSA.
Pou rankontre estanda nan ijans ijans ak ekipman douch nan ANSI Z358.1- 2014 ak AS 4775-2007 ;;
Natirèl poli Nerjaveèi asye (304SS) rekòmande pou anviwònman piman bouk;
Men ak operasyon pye pou je / figi lave;
Zye / figi lave depase minimòm dlo koule nan 3.0GPM (11.4LPM) nan 210kPa (30psi);
AES bouch plastik AES bay menm, likid kontinye ak konfòtab irige ak kole tou de figi a ak je an menm tan;
Pou WG7033FY, bòl dlo yo wo-vizibilite jòn ak te fè nan plastik AES ki gen gwo pwopriyete rezistans tan, rigidty segondè, ak tenacity segondè.
Pou bòl dlo ki pi dirab nan WG7033F, chwazi asye pur (304SS) ki kanpe jiska korozyon ak enpak agresif.
Pedestal Mounted Eye Lave System ak ANSI Z358.1-2014 ak OSHA 29 CFR 1910.151 (C) estanda
Modèl | Pousantaj koule L / min | Dlo Bowl | Valv (304SS) | Tiyo | Quick Coupling | Inlet | Outlet | GW | NW / Kgs. | Rekòmande Pwovizyon pou likid | ||||||
304SS | AES plastik | 25mm (1 ") | 15mm | Inlet tiyo | Outlet tiyo | Bull Horn Tib | 15mm | 25mm | Koneksyon tiyo | Pwovizyon pou L / min | Presyon KPa | |||||
WG7033FY | 11.4 | - | √ | - | √ | 15mm | 42mm | 18mm | √ | √ | √ | 5.6 | 3.8 | 15mm | 30 | 210 |
WG7033F | 11.4 | √ | - | - | √ | 15mm | 42mm | 18mm | √ | √ | √ | 5.8 | 4.0 | 15mm | 30 | 210 |
Anbalaj
Modèl | procesna lis | Eksteryè anbalaj (L × W × H / mm) | Anndan anbalaj (L × W × H / mm) | Kalite anbalaj | GW / Kg |
WG7033FY | Tiyo Bouch headx2 Pouse men x1 Boul Valv x1 AES plastik Bowl x1 Pye pedal x1 Itilizatè Manyèl x1 Lank x4 | 950 × 350 × 265 | 330 × 330 × 130 | Carton | 1.8 |
WG7033F | Tiyo Bouch headx2 Pouse men x1 Boul Valv x1 304SS Bowl x1 Pye pedal x1 Itilizatè Manyèl x1 Lank x4 | 950 × 350 × 265 | 330 × 330 × 130 | Carton | 5.8 |
Baj popilè: pedestal monte lave sistèm, Swèd, manifaktirè, pri, achte, pou vann
